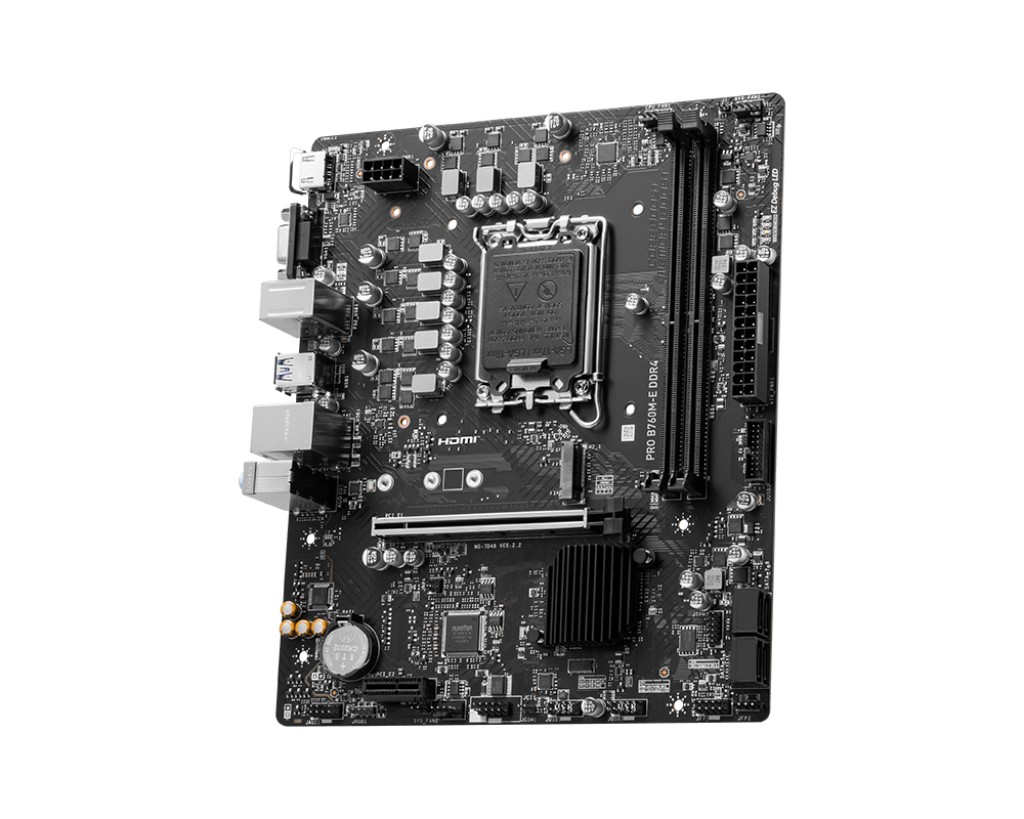

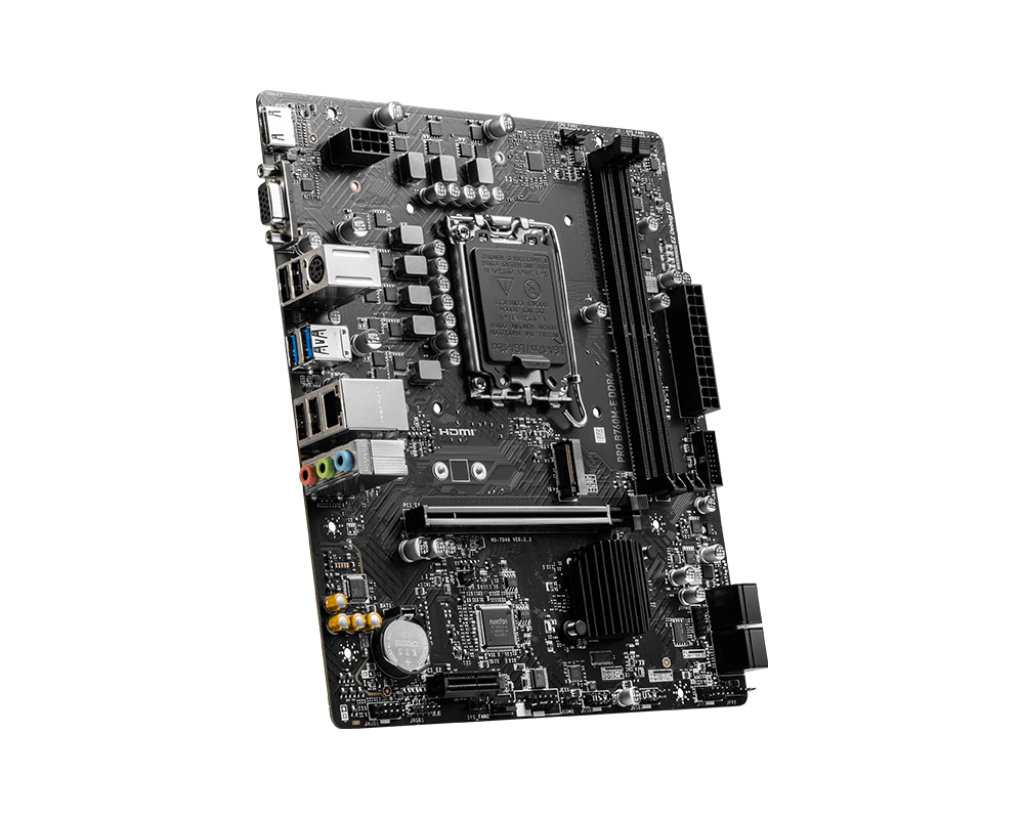

MSI PRO B760M-E DDR4 Motherboard, Micro-ATX - Supports Intel 14Th, 13Th & 12Th Gen Core Processors, LGA 1700 - DDR4 Memory Boost 4800+Mhz/OC, Pcie 4.0 X16 Slot, M.2 Gen4 Slot
MSI PRO B760M-E DDR4 Motherboard, Micro-ATX - Supports Intel 14Th, 13Th & 12Th Gen Core Processors, LGA 1700 - DDR4 Memory Boost 4800+Mhz/OC, Pcie 4.0 X16 Slot, M.2 Gen4 Slot
MSI PRO B760M-E DDR4 Motherboard, Micro-ATX - Supports Intel 14Th, 13Th & 12Th Gen Core Processors, LGA 1700 - DDR4 Memory Boost 4800+Mhz/OC, Pcie 4.0 X16 Slot, M.2 Gen4 Slot
MSI PRO B760M-E DDR4 Motherboard, Micro-ATX - Supports Intel 14Th, 13Th & 12Th Gen Core Processors, LGA 1700 - DDR4 Memory Boost 4800+Mhz/OC, Pcie 4.0 X16 Slot, M.2 Gen4 Slot
MSI PRO B760M-E DDR4 Motherboard, Micro-ATX - Supports Intel 14Th, 13Th & 12Th Gen Core Processors, LGA 1700 - DDR4 Memory Boost 4800+Mhz/OC, Pcie 4.0 X16 Slot, M.2 Gen4 Slot
2 Today's Views

MSI PRO B760M-E DDR4 Motherboard, Micro-ATX - Supports Intel 14Th, 13Th & 12Th Gen Core Processors, LGA 1700 - DDR4 Memory Boost 4800+Mhz/OC, Pcie 4.0 X16 Slot, M.2 Gen4 Slot

Category: Motherboards
SKU:
Seller: RAVI INFOSYS

7 Days Replacement Policy
₹ 8,500.00 ₹ 19,999.00

You save: 11,499.00

Brand :
Delivery to: Check

Description


• Model: MSI PRO B760M‑E DDR4
• Form Factor: Micro‑ATX (200 × 236 mm)
• Chipset: Intel B760 (LGA 1700) :contentReference[oaicite:1]{index=1}
• CPU Support: Intel 12th/13th/14th‑Gen Core™, Pentium Gold, Celeron (LGA 1700) :contentReference[oaicite:2]{index=2}
• Memory Slots: 2 × DDR4 DIMM (dual-channel) :contentReference[oaicite:3]{index=3}
• Maximum Memory: Up to 64 GB DDR4 :contentReference[oaicite:4]{index=4}
• Memory Speed Support: 2133–4800 MHz (OC; 4800 MHz on single module) :contentReference[oaicite:5]{index=5}
• PCIe Slots: 1 × PCIe 4.0 x16 (steel-reinforced), 1 × PCIe 3.0 x1 :contentReference[oaicite:6]{index=6}
• M.2 Slot: 1 × M.2 PCIe 4.0 x4 / SATA (2280/2260/2242) with Shield Frozr :contentReference[oaicite:7]{index=7}
• SATA Ports: 4 × SATA 6 Gb/s (supports RAID 0/1/5/10; note M.2 SATA disables SATA5) :contentReference[oaicite:8]{index=8}
• Integrated Graphics Outputs: 1 × HDMI 1.4 (4K @30 Hz), 1 × VGA :contentReference[oaicite:9]{index=9}

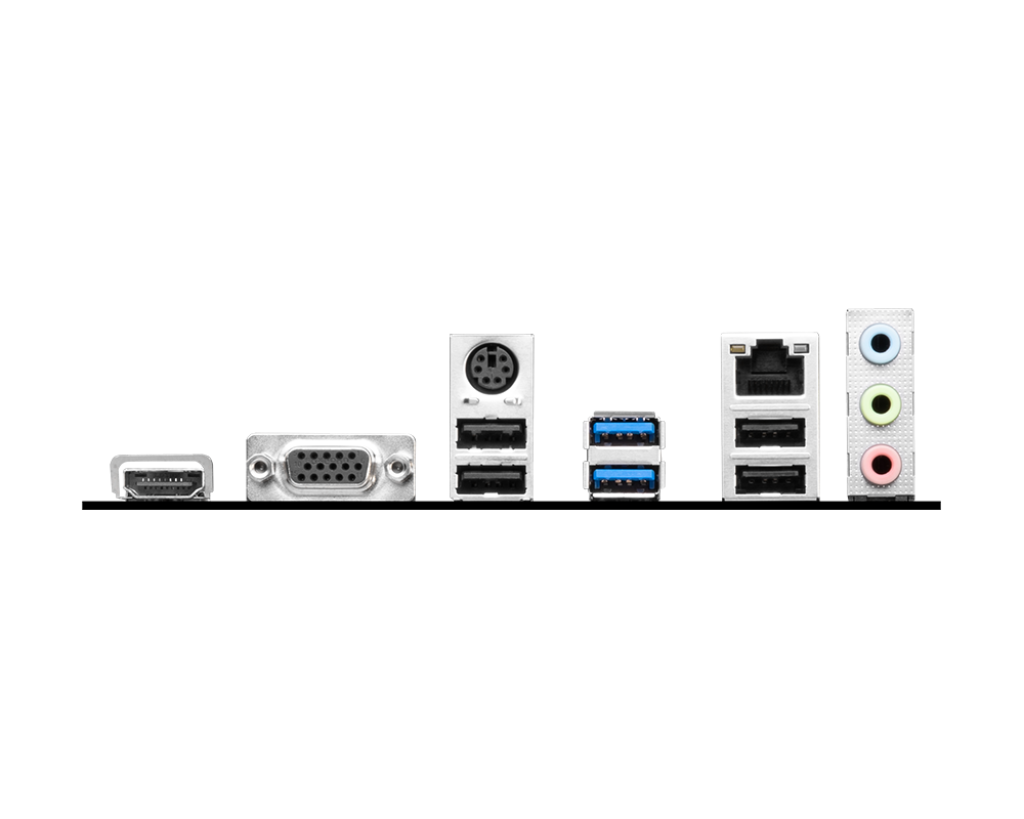

• USB (Rear): 2 × USB 3.2 Gen1 Type‑A (5 Gbps), 4 × USB 2.0 :contentReference[oaicite:10]{index=10}
• USB (Internal Headers): 2 × USB 3.2 Gen1 Type‑A, 4 × USB 2.0 :contentReference[oaicite:11]{index=11}
• LAN: Realtek RTL8111H Gigabit Ethernet (10/100/1000 Mbps) :contentReference[oaicite:12]{index=12}
• Audio: Realtek ALC897 Codec, 7.1‑channel HD Audio with Audio Boost :contentReference[oaicite:13]{index=13}
• Internal Headers: ATX_24P, CPU_PWR, CPU fan, 2× SYS fan, JFP, JAUD, JCOM, JRGB, TPM, chassis intrusion, front USB/SATA :contentReference[oaicite:14]{index=14}
• EZ Debug LEDs: 4 onboard LEDs for easy troubleshooting :contentReference[oaicite:15]{index=15}
• BIOS: UEFI AMI, 256 Mb, SMBIOS 3.5 :contentReference[oaicite:16]{index=16}
• Special Features: Core Boost, Memory Boost, PCIe Steel Armor, M.2 Shield Frozr, Audio Boost, Mystic Light RGB, XMP support, TPM header :contentReference[oaicite:17]{index=17}
• Operating System Support: Windows 10/11 64‑bit :contentReference[oaicite:18]{index=18}
• Weight: ~0.71 kg :contentReference[oaicite:19]{index=19}
• Warranty: 3 Years :contentReference[oaicite:20]{index=20}

Technical Details

  • MSI

  • MSI PRO B760M-E DDR4

  • Matx

  • Intel Pentium

  • LGA 1700 socket

  • DDR4

  • 64GB

  • PCI Express

  • WIFI

  • 1

  • 4

  • 2

  • 1

  • 3 Year
